KISP-E200-LP E SERIES IN-CEILING SPEAKERS

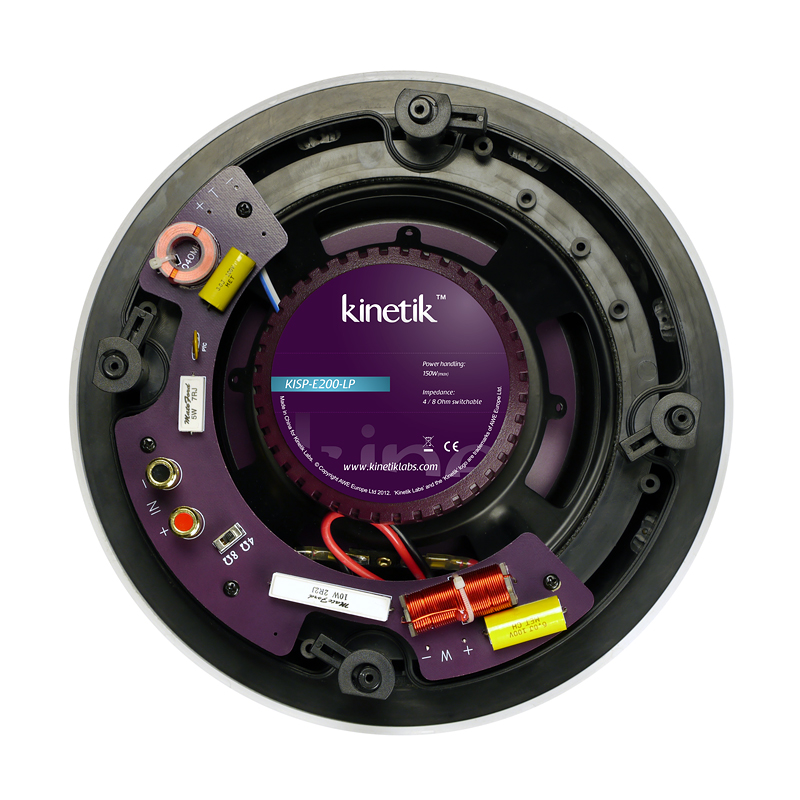

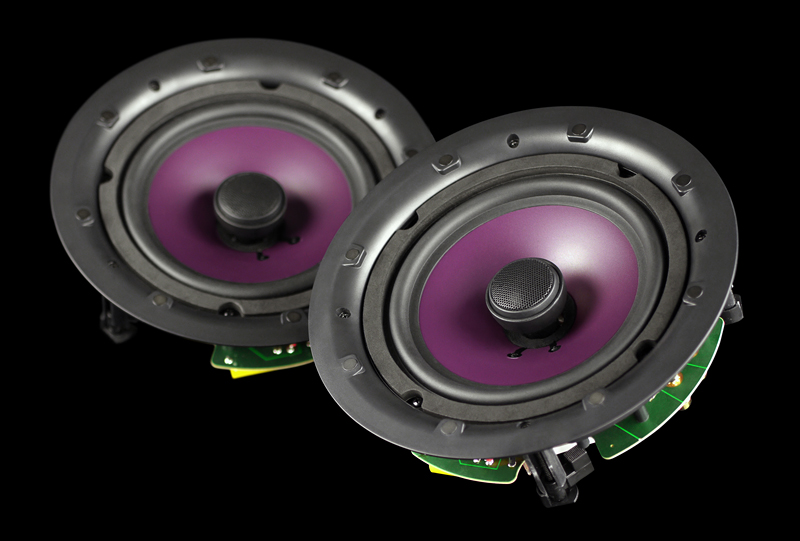

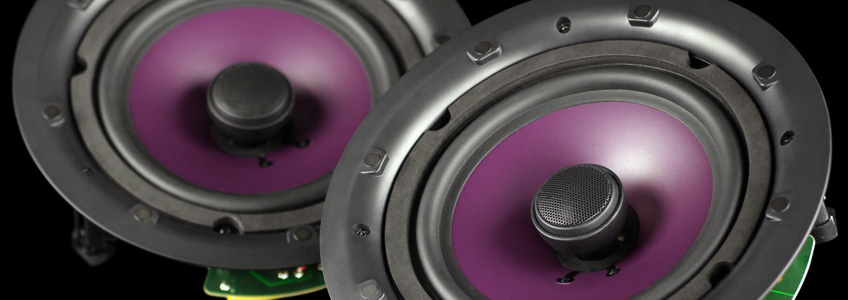

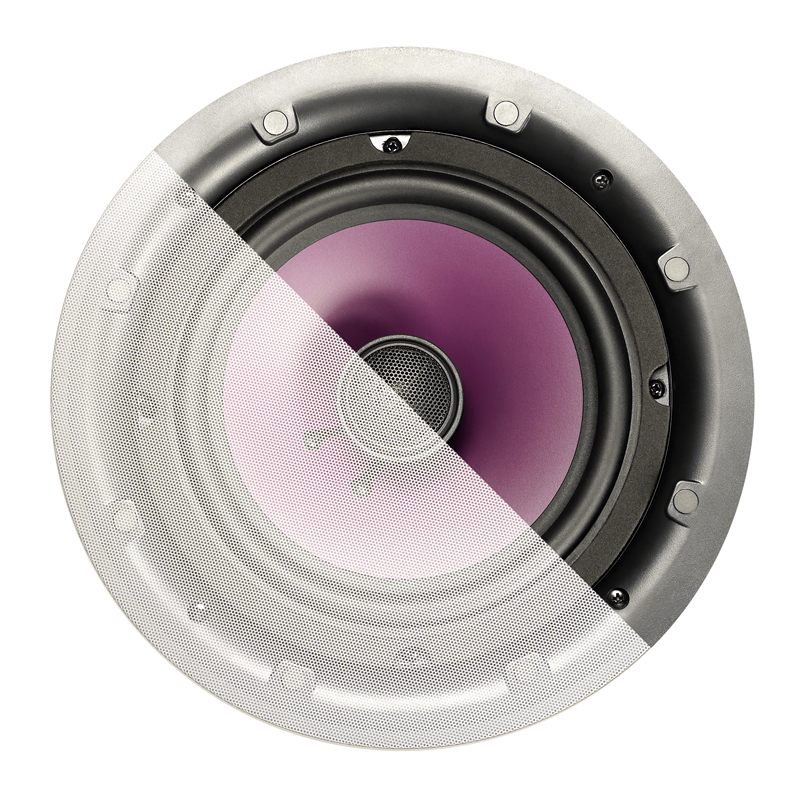

The KISP-E200-LP is designed for installation in ceilings, or other suitable surfaces such as plasterboard walls. It is a two way array design with 200mm polypropylene bass/mid driver and pivotable 25mm silk dome tweeter. The tweeter can be angled 30 degrees in any direction from the centre thanks to its ball and socket design. The speaker impedance can be selected as 4 or 8 Ohms to match the amplification system.
DOWNLOADS/LINKS
FULL SIZE IMAGES
RANGE SPEC SHEET
TECHNICAL
INSTRUCTION MANUAL
SUPPORT
WOULD YOU LIKE TO LEAVE FEEDBACK ABOUT OUR SITE OR PRODUCTS?
SPECIFICATIONS
| Model Number: | KISP-E200-LP |
| Box Contents: | 2x in-ceiling speakers, 2x speaker grilles |
| Included accessories: | 1x cut out template, 1x instruction manual |
| Bass Driver: | 200mm polypropylene |
| Tweeter: | 25mm silk dome |
| Tweeter Protection: | Polyimide auto protective reset switch |
| Recommended Power: | 10 - 150W (RMS) |
| Impedance: | 4 / 8 Ohm switchable |
| Sensitivity: | 89dB |
| Frequency Response: | 45 - 22,000Hz |
| Cutout Size: | 250mm |
| Mounting Depth: | 107mm |
| Speaker Weight: | 2.2kg |
| Packed Weight: | 6.85kg |
| Max. surface thickness: | 37mm |
IMAGES
